DOOR LEAF CONCTRUCTION

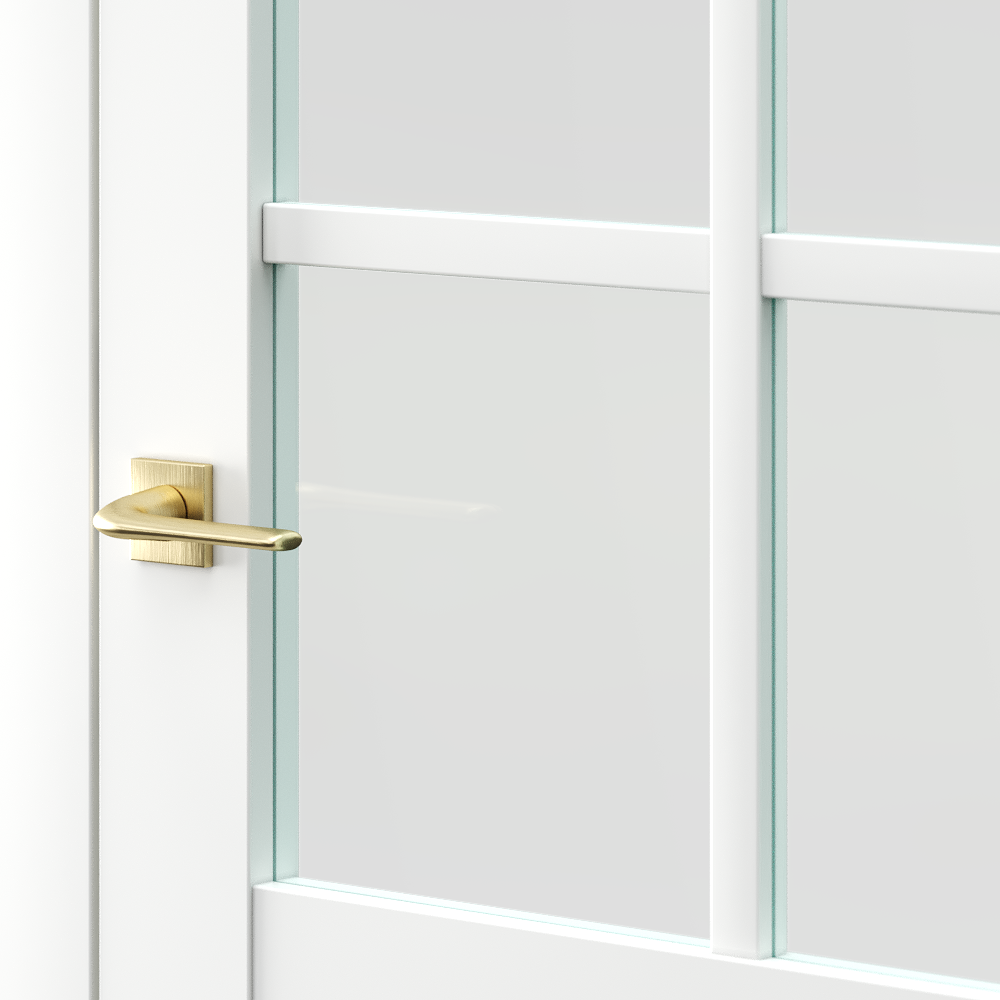

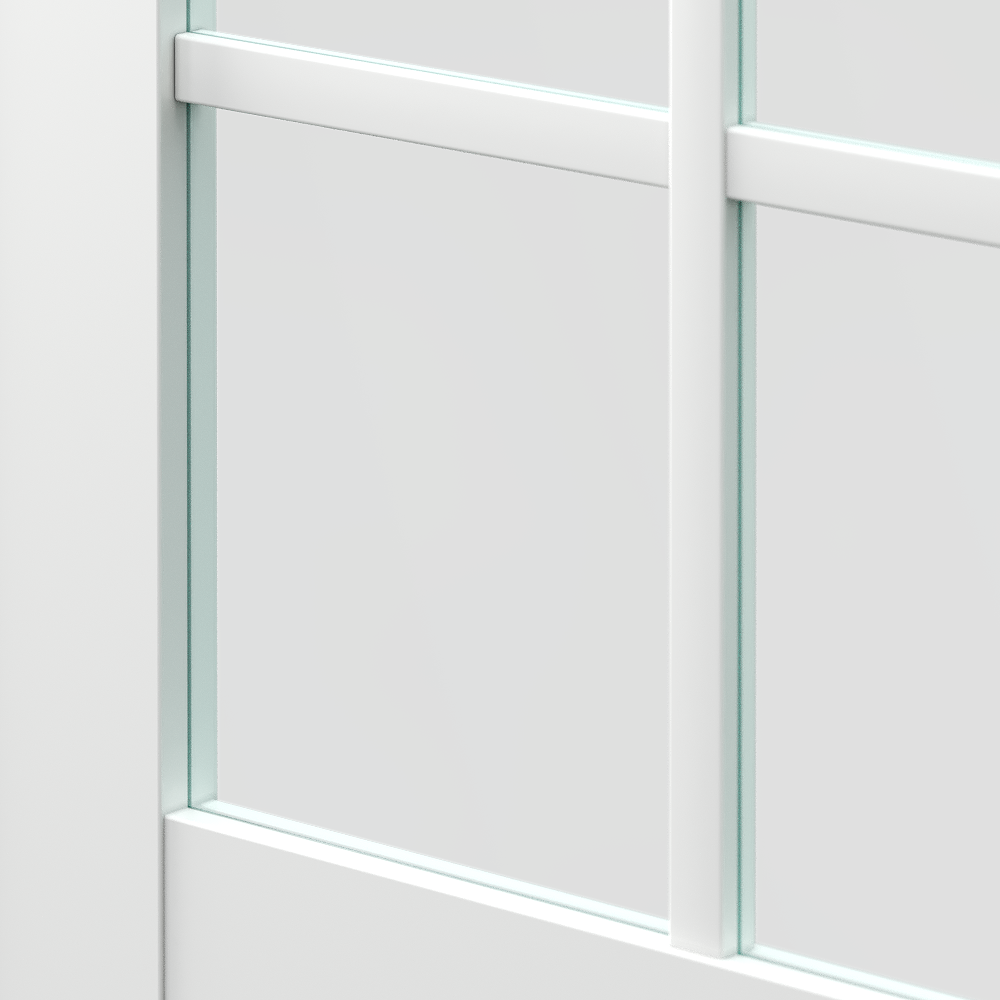

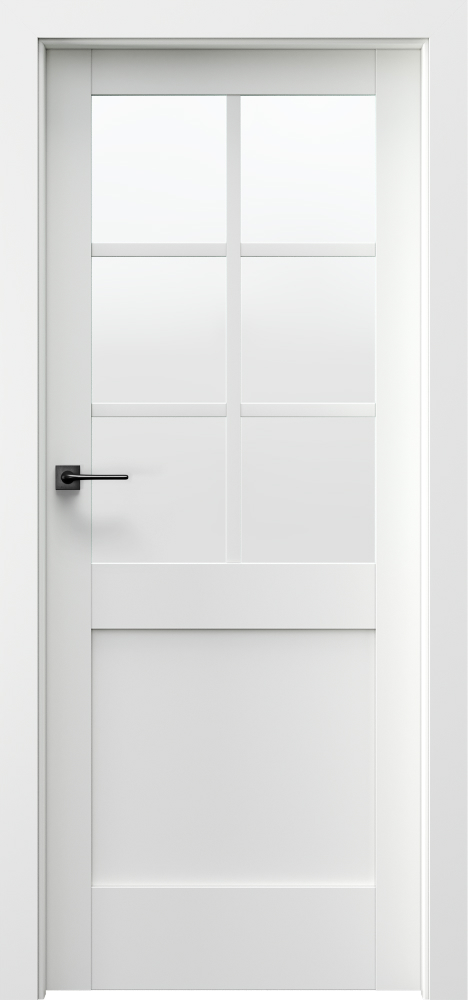

Frame and panel construction. The door leaves, depending on the design, are made of horizontal frames and 6 mm thick frosted laminated safety glass. The panel in model V.2 is 6 mm thick. The glazing bars are 30 mm wide. Preparation for shortening maximum 60 mm. Size ‘100’ requires third hinge.

FINISH

Model V.1 can be made with a mirror on one or both sides. If a mirror is only on one side, there is a solidboard on the other side. It is possible to replace the glass with transparent tempered glass, 6 mm thick.

ACCESSORIES

  • Rebated doors: three standard hinges or PRIME hinges
  • Non-rebated and reversed rebate doors: two 3D hinges
  • Lock with a silver or gold polished faceplate: for a standard key, with a bathroom lock, or adapted for a cylinder lock
  • Round pull handle (for sliding doors)

DOOR FRAMES

Recommended rebated door frames:

  • PORTA SYSTEM HYDRO PROTECT™  in UV Premium Plus Lacquer
  • PORTA SYSTEM in UV Premium Plus Lacquer
  • MINIMAX in UV Premium Plus Lacquer

Recommended non-rebated door frames:

  • PORTA SYSTEM ELEGANCE HYDRO PROTECT™ in UV Premium Plus Lacquer
  • PORTA SYSTEM ELEGANCE in UV Premium Plus Lacquer
  • PORTA SYSTEM ELEGANCE 90 degrees in UV Premium Plus Lacquer
  • LEVEL in UV Premium Plus Lacquer

Recommended door frames with reversed rebate:

  • PORTA SYSTEM with reverse rebate in UV Premium Plus Lacquer

NOTES

  • Norm PN EN 14351-2:2018-12
  • Double doors are available in any door leaf size combinations
  • Magnetic lock is not available for a double door
  • In double non-rebated doors, there are two active and passive leaves in sizes from “60” to “100”
  • PRIME hinges or 3D hinges – packed with the door frame

EXTRA CHARGES

  • size ‘100’
  • ventilation undercut
  • transparent glass – without surcharge
  • mirror on one side
  • mirror on both sides
  • black lock and black barrel hinges
  • magnetic lock with stainless steel faceplate
  • black magnetic lock and black pivot hinges in rebated doors
  • black or white magnetic lock in non-rebated doors
  • gold magnetic lock
  • non-rebated door leaf, additional third 3D hinge, silver, white, black
    (surcharge for door frame price)
  • non-rebated door leaf, additional third 3D hinge, gold (surcharge for door frame price)
  • non-rebated door leaf, 3D hinges, gold (surcharge for door frame price)
  • reversed rebate – extra charge added to door leaf price
  • reverse rebated – additional third 3D hinge, white, black (surcharge for door frame price)
  • reversed rebate – third 3D hinge, silver (extra charge added to doorframe price)
  • reverse rebated – 3D Hinges, Gold (surcharge for door frame price)
  • reverse rebated – additional third 3D Hinge, Gold (surcharge for door frame price)
  • oblong pull handle for sliding doors
  • hook lock with side pull handles (sliding doors)
  • handle with an escutcheon
